Steel Mate

STEELMATE DIY TP-V3 | 6 WHEEL EXTERNAL TPMS FOR 4-WHEEL VEHICLE/+TRAILER

STEELMATE DIY TP-V3 | 6 WHEEL EXTERNAL TPMS FOR 4-WHEEL VEHICLE/+TRAILER

Regular price N$4,290.00
Regular price Sale price N$4,290.00
Sale Sold out
Tax included.

KEY FEATURES

  • Fit for 4~12 wheels, for 4-wheel vehicle + trailer or Light Truck
  • Ideal for ultra low pressure monitoring - monitors from 0,8 bar without alarm
  • Can be used for ultralow tire pressure vehicle
  • Adjustable alarm threshold value of tyre pressure & temperature
  • Match with 6 external sensors

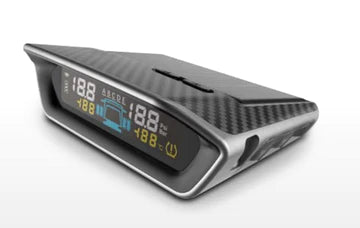

  • Multi color solar-powered display
  • Sensor pressure range: 0~7.9 Bar / 0~115 PSI
  • Waterproof compact-size repeater is available at R399 incl vat
  • Adjustable display duration time of each axle
  • Optional Micro USB input
  • Max. 14 tires available (2 in steering wheels, 12 in other 3 axletrees)
  • Pressure threshold value of each axles can be adjusted separately
  • Smart auto adjust backlit brightness
  • Intelligent sleeping mode for power saving
  • Pre-programmed sensors, no pairing is needed
  • Low power consumption in sensor
  • Replaceable sensor battery (CR1632)

SPECIFICATIONS:

SENSOR:

  • Operating frequency:                       433.92MHz ± 0.05MHz
  • Operating Voltage:                            2.0~3.3V
  • Operating Current:                            12mA
  • Static current:                                   0.5μA
  • Operating temperature:                   -20°C~+80°C
  • Storage temperature:                      -40°C~+80°C
  • Battery Specification:                       CR1632
  • Battery Lifetime:                               2 years
  • Weight:                                              8.9g ± 0.5g

ALARM VALUES

  • Alarm Value:
    Adjustable High pressure value:      2.6~7.9Bar

    Adjustable Low pressure value:        0.9~3.9Bar

    Adjustable High temperature value:    70~90°C

  • Default value:
    High pressure value:   3.3Bar
    Low Pressure value:   1.7Bar
    High temperature value:   80°C

Note: The alarm pressure value suggest to be±25% of recommended tire pressure

Pairing Instructions:

The pairing process is as follows:

1. Press the spanner button 5 time in quick succession then you will hear a beep sound - this will signal that you are in pairing mode

2. It will be flashing in the front left tyre,

3. Take the display to the tyre that is flashing and then let out some air from that tyre by screwing the sensor on a bit

4. After about 4-8 seconds there will be a pressure reading on the display,

5. Press the spanner button ONCE, the screen won’t be flashing

6. Then use the arrow button to go to the next tyre and repeat the process

7. Once all 4 tyres are done in the above manner then hold the spanner button down for 4 seconds to save and exit the pairing mode
