Stedi ST3K 41.5" Single Row Slim 40 Osram Oslon White LED Light Bar
Stedi ST3K 41.5" Single Row Slim 40 Osram Oslon White LED Light Bar
Couldn't load pickup availability
The STEDI ST3K LED Light is was designed to bring a large amount of light to a small amount of space. With a total height of just 2.4" (with the side brackets attached), you will find the ST3K is able to be mounted on your front bar or grill, whilst maintaining the factory look of your vehicle.
The ST3K range is easily comparable to the STEDI Type-X and ST4k range. With a strong penetrating beam of 493m at 1 LUX and 55m out to the shoulders of the road (with flood beam), the ST3K 41.5 is the perfect all-rounder!
MARKET LEADING PERFORMANCE.
ST3K-40L features 40 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.
8 Flood + 24 Spot + 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 699m
True White 5700K Colour temperature offers stunning clarity and definition.
Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!
Environmentally sealed Deutsch DT-2 connector.
Protected against EMC and RFI.

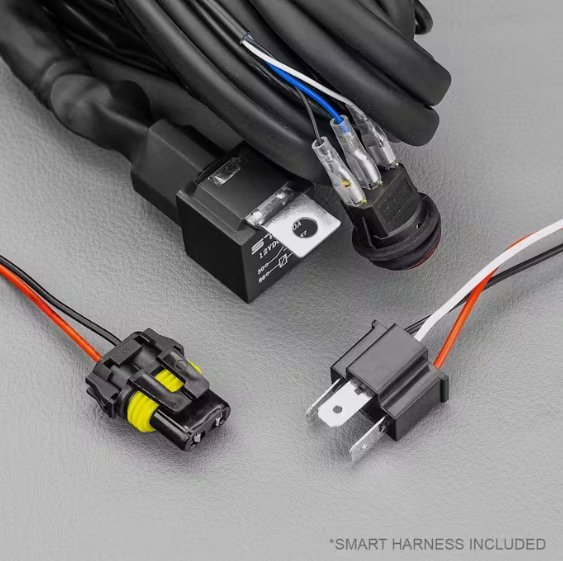

Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market, ours has built-in electronics making our harness compatible with even the most modern and sophisticated wiring systems
Backed by a 5 Year Replacement Warranty.
TECH SPECS:
| LED | 40 x Osram Oslon White |
| Effective Lumen | 8,250Lm |
| Peak Intensity (Candela) | 486,400cd |
| Operating Voltage | 10-30V DC |
| IP Rating | IP68 |
| Current Draw | 8.6A @ 13.6v |
| Color Temperature (CCT) | 5700 Kelvin |
| Housing Material | Aluminum Extrusion & Cast |
| Lens | GE™ Lexan |
| Mounting Bracket | Powder Coated 3mm Stainless Steel |
| Bolts and Fittings | 3 Series Stainless Steel |
| Beam Type | Flood Spot Combo |
| Life Span | 50,000 Hours |
| Weight | 7.6lbs |
| Operating Environment | -40°F - +140°F |
| PHOTOMETRIC DATA | |
| 10 M | 4,886 Lx |
| 50 M | 195 Lx |
| 100 M | 46 Lx |
| 200 M | 11.5 Lx |
| 699 M | 1 Lx |
INCLUDED:
- ST3K 41.5inch LED LIGHT BAR
- Stainless Fasteners
- Stainless Steel Side Mounting Brackets
- 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
- H4 and HB3 adapters included
- Wiring Instructions
