Lazer Grill Integrated LED Bars - Prices May Vary

2x
Triple-R
750 Elite
(E-Boost Mode)

2x
Triple-R 750
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs
Weight 2 kg 2 kg
HIGH BEAM FUNCTION
Total Luminous Flux
10136 Lm

9240 Lm
Total Driver 'FOV' Flux † 6680 Lm 5572 Lm
Colour Temperature 5000K 5000K
Number of High Output LEDs 2 x 4 2 x 4
Power Consumption 104 Watts 88 Watts
Current Draw (at 14.4V) 7.2 Amps 6.2 Amps
CERTIFICATION
High Beam ECE R112 ECE R112
ECE Reference
N/A
(12.5 x2 - E-Mark Mode)

35 x2
Position Light (White only) N/A ECE R7

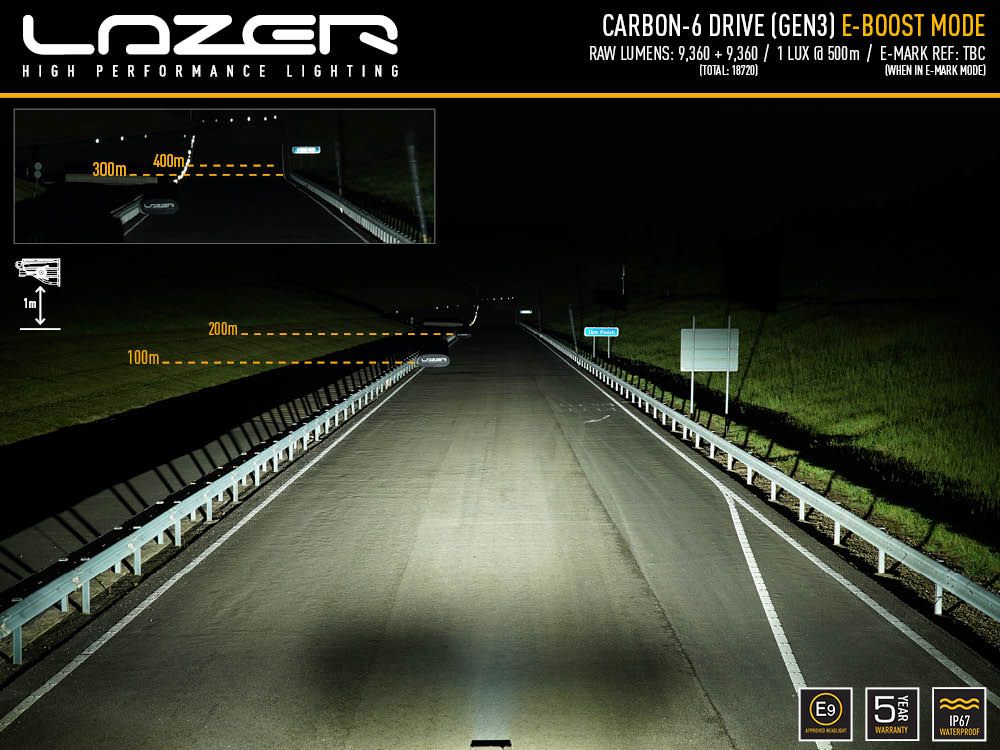

PHOTOMETRIC DATA
Horizontal Beam Angle 42° 19°
0.25 lx Line 1358m 1225m
0.5 lx Line 960m 866m
1 lx Line 679m 612m
3 lx Line 392m 354m
