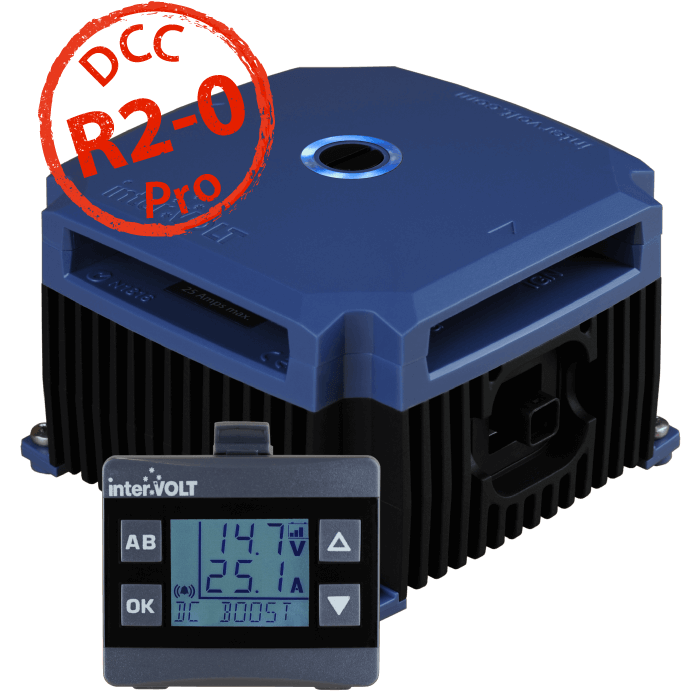

Intervolt DC to DC R2-0

Input Voltage –
• Main: 9 – 16 VDC
• Solar: 18 – 28 VOC (open circuit Voltage – no load)

Solar Power – Unrestricted (system limited to 25 Amps)

Continuous Rating – 25 Amps@50°C (de-rate from 50°C to 85°C)

Current Draw – Charging Device:
In stand by: Including LED indicator <10mA
At full load: Up to 35 Amps

Current Draw – Remote Display:
With backlight off: 10mA ma
With backlight on: 45mA max

Output Voltage – (Voltage values subject to tolerance ± 0.1V)

• Standard Lead Acid:
• Boost/CC: 14.5 VDC, Absorption/CV: 14.4 VDC, Float/CV: 13.4 VDC
• Absorbed Glass Mat:
• Boost/CC: 14.7 VDC, Absorption/CV: 14.6 VDC, Float/CV: 13.6 VDC
• Gelified Electrolyte:
• Boost/CC: 14.3 VDC, Absorption/CV: 14.2 VDC, Float/CV: 13.5 VDC
• Lead Calcium:
• Boost/CC: 14.9 VDC, Absorption/CV: 14.8 VDC, Float/CV: 13.8 VDC
• LiFePO4 BMS:
• Boost/CC: 14.6 VDC, Absorption/CV: – , Float/CV: 14.4 VDC

Electrical Protection –
• Over temperature disconnect – auto re-connect
• Under Voltage shutdown – auto re-start
• High Voltage disconnect – auto re-connect
• Reverse polarity protection on all terminals

Environmental Protection –
• Charging Device: IP67 (internal components only)
• Remote Display: IP40 (not dust or water resistant)

Operating Temperature – -20°C to +85°C

Operating Humidity – Up to 100% (non-condensing)

Charging Device Materials –
• Heatsink: E-Coated ADC-3 die cast aluminium
• Blue Plastics: 10% glass reinforced PC/ABS alloy
• Black Plastics: 15% glass reinforced PBT
• Transparent Plastics: Temperature resistant PMMA

Remote Display Materials –
• Dark Grey Plastics: Temperature resistant PC/ABS alloy
• Transparent Plastics: Temperature resistant PMMA

Terminal Material – Tin plated brass

Terminal Fasteners – 304 stainless steel

Conformity – AS/NZS CISPR 11:2004 for EMC

Dimensions –
• Charging Device: 112 x 112 x 75mm (including terminal cover)
• Remote Display: 60 x 36 x 59mm (including mounting bracket)

Weight –
• Charging Device: 690 grams
• Remote Display: 55 grams
