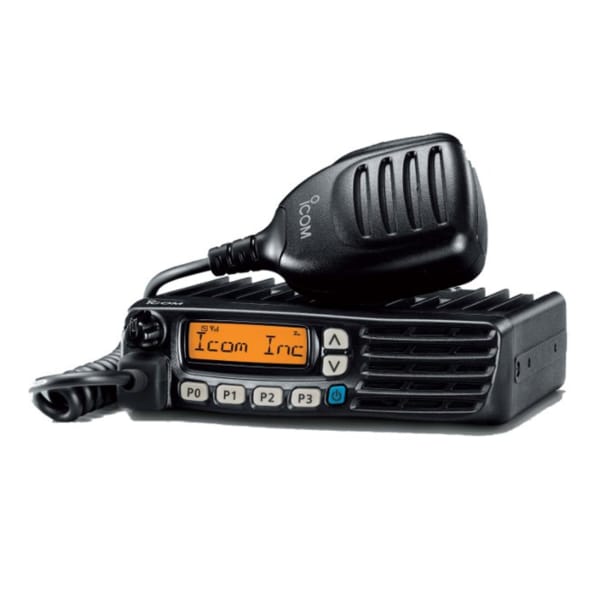

Icom IC-F5022 VHF FM Transceiver

Excludes Hand Held Unit

Frequency coverage
136–174MHz

400–470MHz

Number of channels
Max. 128 Ch/ 8 zones

Channel spacing
2.5/20/25kHz

Type of emission
16K0F3E, 14K0F3E, 8K50F3E

Current drain
(approx.)    Tx    25W
5.0A

Rx    Max. audio
0.7A

Stand-by
250mA

Antenna connector    BNC Type
Dimensions
(projections not included; W×H×D)
150×40×117.5 mm

Weight
0.8kg (approx.)

Transmitter
IC-F5022
IC-F6022
RF output power
25W

Spurious emissions
0.25μW (≤ 1GHz) 1.0μW (> 1GHz)

Frequency stability
±1.5kHz

Audio harmonic distortion
3% typical
40% deviation

FM Hum and Noise
-

Receiver
IC-F5022
IC-F6022
Sensitivity at 20dB SINAD
–4dBμV (typ.)

Adjacent channel selectivity (WM/N)
75dB/75dB/65dB (typ.)

Spurious response rejection
80dB (typ.)

Intermodulation rejection
67dB (typ.)

AF output power
(at 5% distortion with an 4 Ω load)
4W (typ.)

Function Comparison and Internal Unit Options
IC-F5022
IC-F6022
Number of option slots    1
CTCSS/ DTCS    encoder    Available
decoder    Available
2-Tone    encoder    Available
decoder    Available
5-Tone    encoder    Available
decoder    Available
DTMF autodial    Available
DTMF decoder    -
Voice Scrambler    Inversion
-

BllS 1200    Available (Limited functions)
MPT 1327    -
LTR™ trunking    -
IDAS digital    -
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard    MIL-810 F
Method, Proc.
Low Pressure Storage
500.4 I

Low Pressure Operation
500.4 II

High Temperature Storage
501.4 I

High Temperature Operation
501.4 II

Low Temperature Storage
502.4 I

Low Temperature Operation
502.4 II

Temperature Shock
503.4 I

Solar Radiation
505.4 I

Humidity Induced
507.4

Settling Dust
510.4 III

Vibration
514.5 I

Shock Functional
516.5 I

Shock Transit Drop
516.5 IV

Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.

Supplied Accessories
Microphone, HM-152
Microphone hanger and its cable
Mounting bracket kit
DC power cable
Function name sticker
