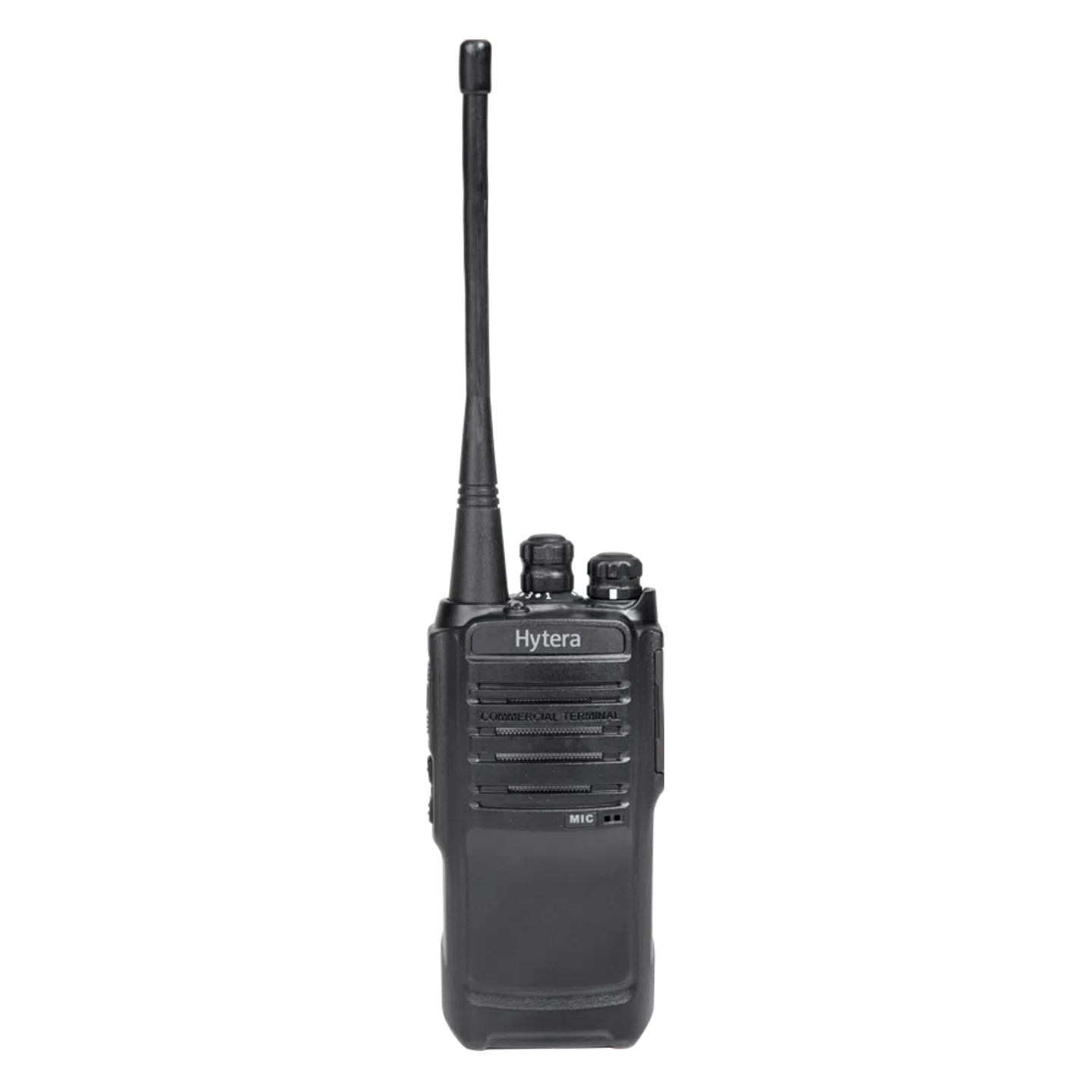

HYT TC-508 5W VHF Transceiver
HYT TC-508 5W VHF Transceiver
Regular price
N$2,570.00
Regular price
Sale price
N$2,570.00
Unit price
per
Tax included.
Couldn't load pickup availability
The HYT TC-508 is an ideal choice for facilities, hospitality, manufacturing, retail, education and construction. The TC-508 offers a compact and ergonomic design, great performance in any operating conditions, and up to 14 hours of battery life. If you are looking for an affordable, reliable, high-performance analog radio, get your hands on a TC-508.
| General | |
|---|---|
| Frequency Range | UHF: 400-470 MHz; VHF: 136-174 MHz |
| Channel Capacity | 16 |
| Channel Spacing | 25 KHz/12.5 KHz |
| Operating Voltage | 7.4 V |
| Battery | 1300 mAh |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | 11 hours |
| Frequency Stability | ±2.5 ppm |
| Antenna Impedance | 50 Ω |
| Dimensions(H×W×D) mm | 113 mm × 54 mm × 35 mm |
| Weight | 280 g |
| Receiver | |
|---|---|
| Sensitivity(Analog) | ≤0.251 uV/0.282 uV |
| Adjacent Channel Selectivity | 65 dB/55 dB |
| Intermodulation | 60 dB |
| Spurious Response Rejection | 65 dB |
| S/N | 45 dB/40 dB |
| Rated Audio Power Output | 0.5 W（Speaker impedance: 16 Ohm） |
| Rated Audio Distortion | ≤5% (0.5 W) |
| Conducted Spurious Emission | -57 dBm < 1 GHz ; -47 dBm > 1 GHz |
| Transmitter | |
|---|---|
| RF Power Output | 5 W/2 W(VHF) 4 W/2 W(UHF) |
| FM Modulation | 16K0F3E/11K0F3E |
| Modulation Limiting | ≤2.5 KHz (12.5 KHz); ≤5 KHz (25 KHz) |
| FM Hum&Noise | 40/35 dB |
| Audio Distortion | ≤ 5% |
