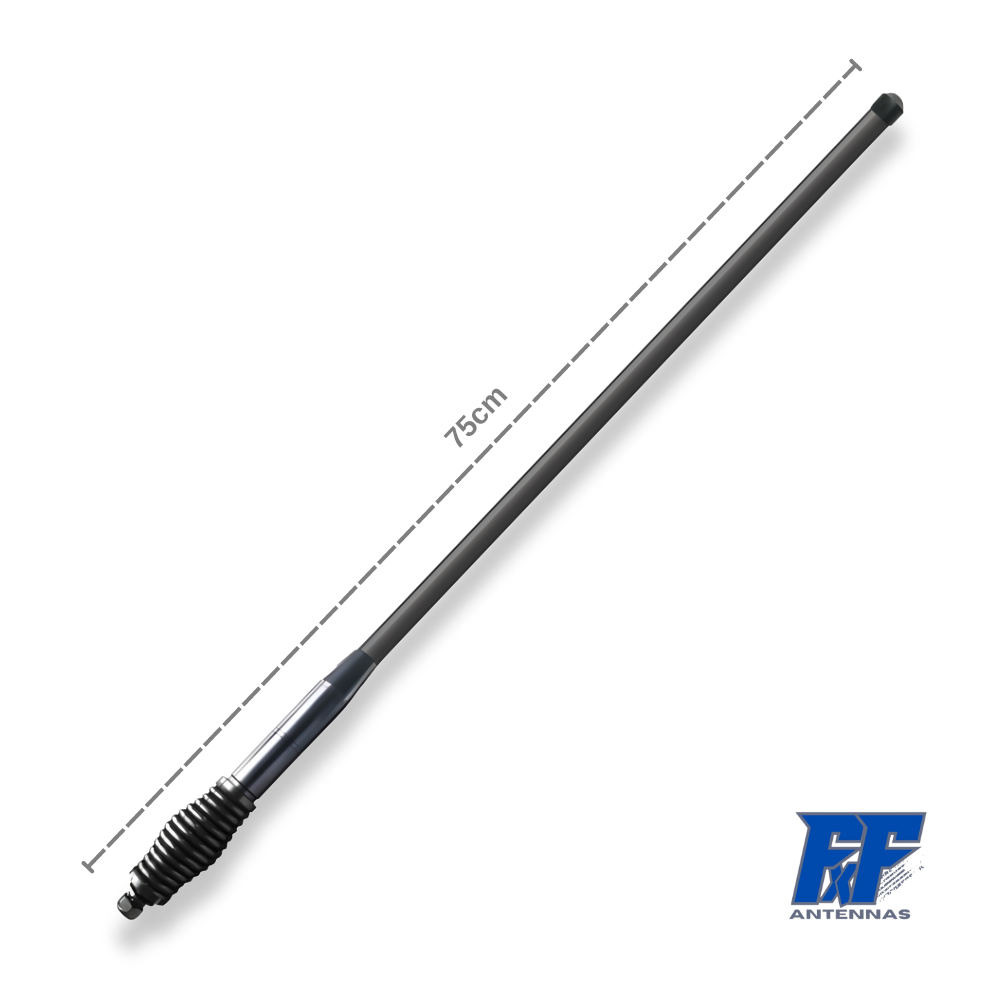

fxf-75/5.5db 75cm 5.5mm spring dual band antenna

The FXF-75/5.5 V is a robust and reliable VHF antenna with a range of up to 60 km, designed for efficient communication within the 136-174 MHz frequency range.

Description

FXF-75/5.5 V
Frequency Range: 136-174 MHz
Center Frequency: 156 MHz
Approximate Range: 30-60 km
Max Power: 100W
Gain: VHF 3.5dBi
Cable: RG58 (4m)
Connector: PL259/BNC (Please specify when placing order)
Length: 75cm
Spring Diameter: 5mm
Securement: The 14mm threaded rod is designed for standard bull bar and spotlight mounts, and comes complete with a washer, spring washer, and Teflon locknut. Additionally, the antenna features a grub screw for enhanced security, ensuring it remains firmly in place even on rugged terrain. This serves as a safety measure, helping to prevent unauthorized removal when the vehicle is unattended.
Included: The L-bracket, complete with U-bolts, is designed to facilitate mounting on bull bars without pre-existing brackets. It also serves as an ideal solution for pole-mounted installations, making it suitable for base station setups. Each antenna comes with an FxF Antenna gel-coated sticker, adding a durable and professional touch to your setup.
