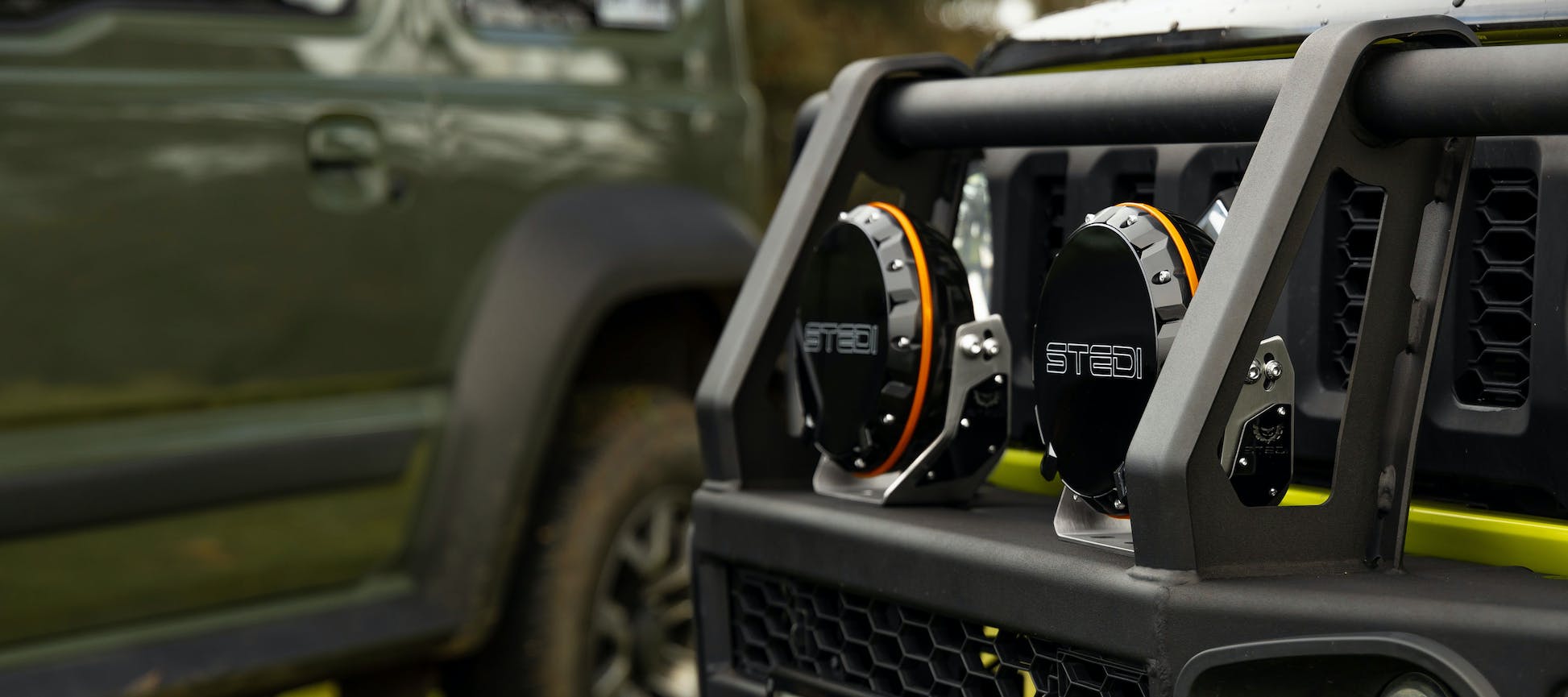

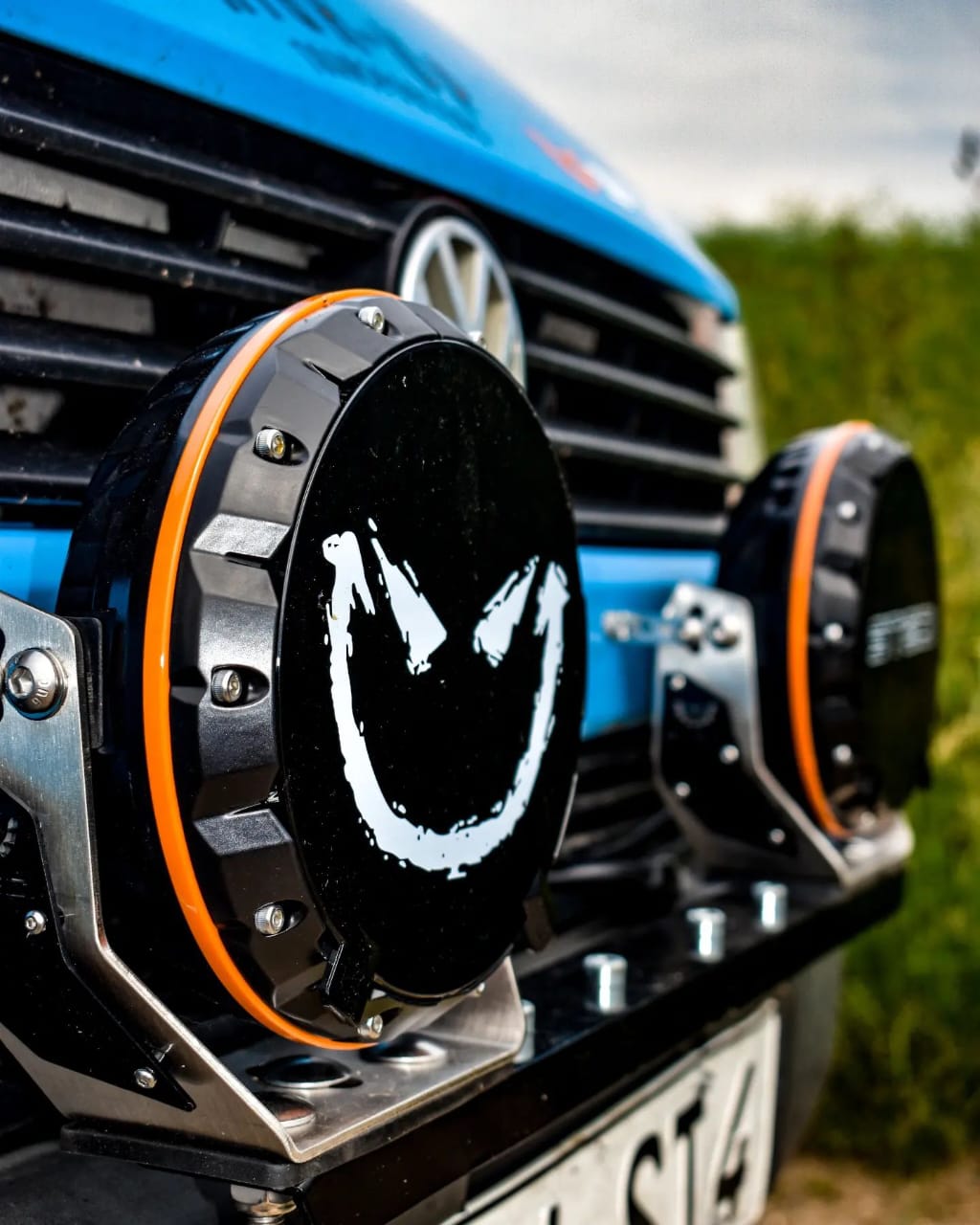

Stedi Spot Light set 7" TYPE-X™ SPORT
Stedi Spot Light set 7" TYPE-X™ SPORT
Regular price
N$12,500.00
Regular price
Sale price
N$12,500.00
Unit price
per
Tax included.
Couldn't load pickup availability
- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust and contaminants.
- Environmentally Sealed Deutsch DT-2 connector
- EMI RFI Suppression circuitry - We guarantee it.
- Each 7" TYPE-X Sport comprises 32 of OSRAM's OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.
- 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
TECH SPECS
| LED | 32 x Osram Oslon SSL |
| RAW LUMENS | 16,640 (Pair) |
| TESTED LUMENS | 12,820 (Pair) |
| AMP DRAW | 6.4A @ 13.2v (each) |
| POWER DRAW | 85W (each) |
| CANDELA | 819,200cd |
| BEAM PATTERN | 4 x Spread 28 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 2.250kg (each) |
| OPERATING TEMP | -40°C - 60°C |
| PHOTOMETRIC DATA | |
| 10 m | 8,129 L |
| 50 m | 327 Lx |
| 200 m | 20 Lx |
| 300 m | 9 Lx |
| 400 m | 5 Lx |
| 895 m | 1Lx |
